4000N Three Extruded Lifting Column For Exam Chair Healthcare Industry

Name: 4000N Three Extruded Lifting Column For Exam Chair Healthcare Industry
Brand: Linsheng Auto II MaxM
Price: 29 USD

Brand Name : Linsheng Auto II MaxM

Model Number : LS-PAT-30

Certification : CE

Place of Origin : CHINA

MOQ : negotiable

Price : 29-299 USD/PCS

Payment Terms : L/C, T/T, PayPal

Supply Ability : 10000 PCS per month

Delivery Time : 2 Weeks

Packaging Details : Paper gift box

Name : Lifting Column

Max load : 4000N

Self-locking force : 4000N

Max. speed at max. load : 13.7mm/s

Voltage : 12V DC；24V DC (thermal control)

Stroke : 250-1200mm

Retracted length : ≥ Stroke/2 + 150mm

Stage : 3 stages

IP grade : IPX6

Warranty : 1 Year

Customization : Available

Contact Now

4000N Three Extruded Lifting Column For Exam Chair Healthcare Industry

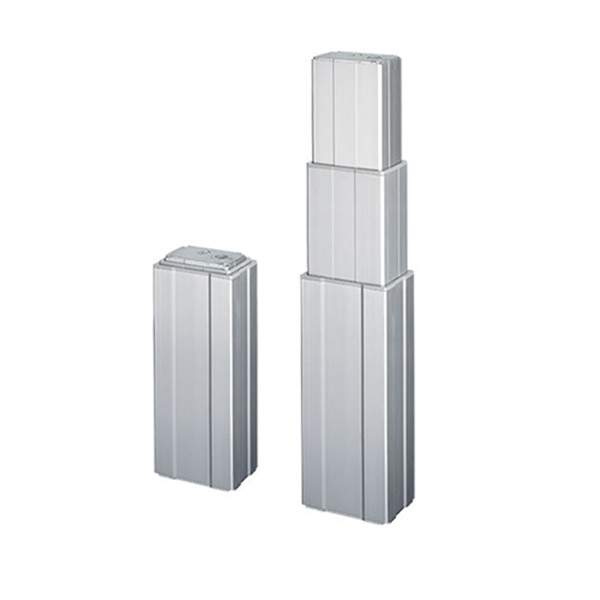

The LS-PAT-30 lifting columns are made up of three extruded aluminum tubes of rectangular shape that give the system great stability and a high stroke with reduced retracted length. This electric lifting column allows for easy integration into many height-adjustable workstation applications, such as an exam chair in the healthcare industry.

Main Specifications:

Voltage	12V DC；24V DC (thermal control)
Max. load	4,000N
Max. dynamic bending moment	1000Nm
Max. static bending moment	2000Nm
Max. speed at max. load	13.7mm/s
Max. speed at no load	39mm/s
Retracted length	≥ Stroke/2+150mm
IP rating	IPX6
Dimension of outer tube	177.4*150.7mm rectangular
Stages	3-stage
Stroke	250~1200mm
Color	Black, matte silver
Option	Hall sensor and Potentionmeter for optional
Operational temperature range	+5°C~+45°C
Warranty	1 Year

Standard Dimension (mm)

4000N Three Extruded Lifting Column For Exam Chair Healthcare Industry

Application:

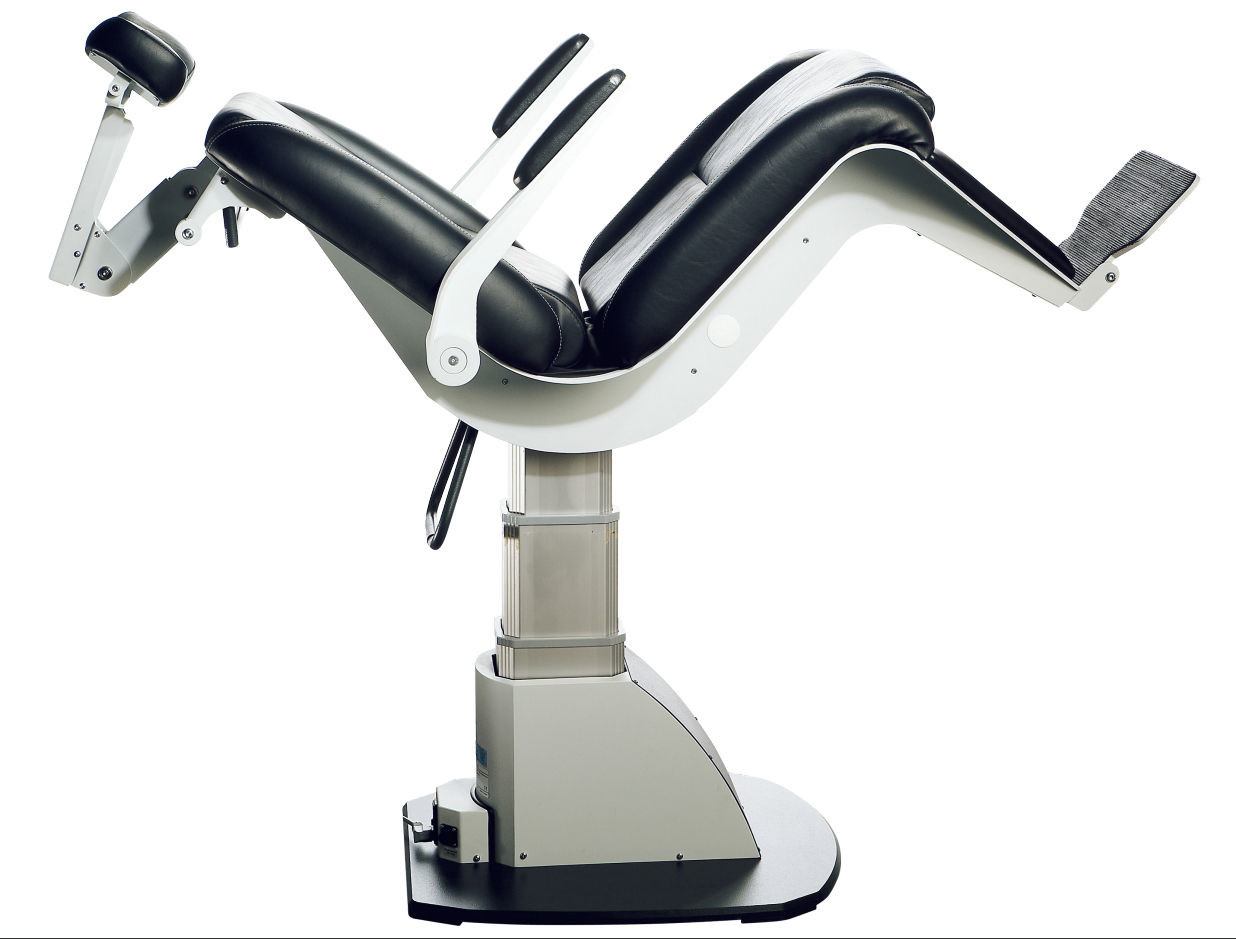

Allows for easy integration into many height-adjustable workstation applications, such as an exam chair in the healthcare industry.
